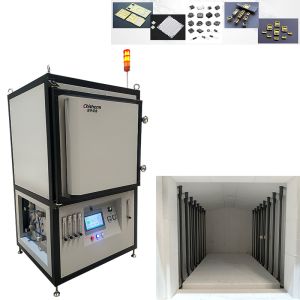

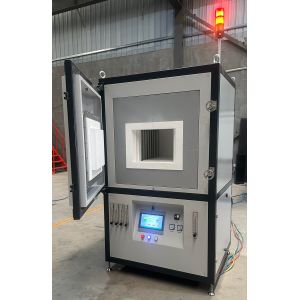

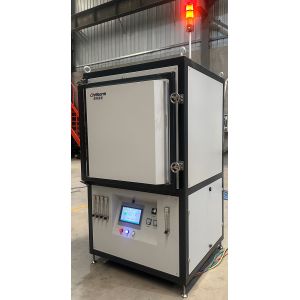

This high-temperature box furnace features vertically installed silicon molybdenum rods with left-right layout in the furnace chamber for optimal temperature uniformity. Designed for laboratory processes, it offers easy operation and excellent temperature uniformity (±5°C @1650°C/2h).
| Model | HBF52-17O High-Temperature Box Furnace |
|---|---|
| Temperature Range | Rated 1650°C, Max 1700°C |
| Effective Chamber Size | 350×300×500 mm (W×H×D) |
| Furnace Lining Material | Alumina products (inner layer) |
| Heating Power | ≤25kW |
| Temperature Control | Single-zone control, 20 programs × 20 steps (programmable) |
| Safety Protections | Heating/door interlock, over-temperature/thermocouple failure/low-pressure audio-visual alarms |
| Power Supply | 3-phase 5-wire, 380±10%V, 50±2%Hz, ≥34kVA, phase-shift control |
| Item | Note | QTY |
|---|---|---|
| Basic Compositions | Furnace | 1 PC |
| Certificates of Inspection | Furnace and major purchased components | 1 Set |
| Technical Documents | Furnace specifications, technical documents of major purchased components | 1 Set |
| Key Parts - Heating Elements | MoSi2 | 1 Set |
| Thermocouple | THERMOWAY, B Type | 1 PC |
| Temperature Controller | CHINO | 1 Set |
| Monitor | Proface 10" touch screen | 1 Set |
| Spares - Heating Elements | MoSi2 | 1 PC |
We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet specific requirements.
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
