MBF22-11N Medium-Temperature Atmosphere Box Furnace with High-Precision Temperature Control
Product Attributes
| Attribute | Value |
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Steel Molding |
| Fuel | Electric |
| Atmosphere | Air |
| Effective Chamber Dimensions | 2000×2000×3000 (D×W×H) |
| Rated Temperature | 1000°C |
| Maximum Temperature | 1100°C |
| Transport Package | Wooden Packaging |
| Specification | 1520×1520×3000mm (W×H×D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Supply Ability | 50 Sets/Year |
| Customization | Available |
| Certification | ISO |
| Place Style | Vertical |
Product Description

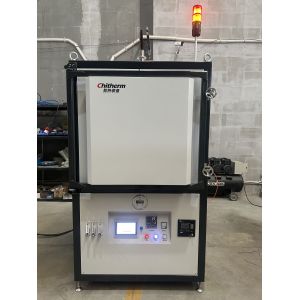

Equipment Name and Model: MBF22-11N Medium-temperature Atmosphere Box Furnace
Technical Specifications and Basic Configuration
- Rated Temperature: 1000°C
- Maximum Temperature: 1100°C
- Effective Size: 330mm×200mm×330mm (W×H×D)
- Sagger Specification: 330mm×100mm×330mm (W×H×D), provided by the customer

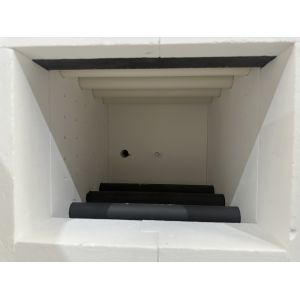

- Loading Method: The sagger is supported by SiC roller rods and arranged in a double-layer and longitudinal double-row manner
- Heating Element: Silicon carbide rod is inserted inside the ceramic tube
- Thermocouple Type: N Graduation
- Number of Temperature Control Points: 1 point
- Temperature Control Method: Imported temperature control module, with a temperature control accuracy of ±1°C and a PID parameter self-tuning function
- Furnace Temperature Uniformity: ±5°C (tested in an empty furnace with saggers at a constant temperature of 1000°C, and a temperature measuring ring is placed at the center of each sagger)
- Sintering Atmosphere: Nitrogen/Air
- Oxygen Content: Better than 10ppm + the oxygen content of the gas source
- Oxygen Detection: One micro oxygen analyzer is configured to monitor the oxygen content in the furnace chamber in real time
- Pressure Detection: A digital differential pressure gauge displays the pressure in the furnace in real time
- Exhaust Method: An exhaust chimney is designed at the top of the furnace chamber, and the exhaust volume can be manually adjusted
- Number of Program Steps: 4×16 steps
- Maximum Heating Power: 12kW
- Heating Rate: ≤5°C/min
- Temperature Rise on the Surface of the Furnace Body: ≤40°C
- Alarm and Protection: Interlock between the heating and the opening/closing action of the furnace door, audible and visual alarms for over-temperature, thermocouple breakage, and low air pressure
- Reference Dimensions of the Appearance: 1300mm×1900mm×1160mm (W×H×D, excluding the chimney), and the specific dimensions shall be subject to the actual product
Delivery List
| Item | Note | Qty. |
| Basic Components | Furnace | 1 PC |
| Inspection Certificate | Certificate of major outsourced components | 1 SET |
| Technical Documents | Instruction Manual, Random Technical Documents of Each Main Outsourced Component, etc. | 1 SET |
| Key Components | Silicon Carbide Rod Inserted in the Ceramic Tube | 1 SET |
| Temperature Control Instrument | Shimaden (Japan) | 1 PC |
| Oxygen Analyzer | | 1 PC |
| Spare Parts | Silicon Carbide Rod | 2 PCS |
