Model NO.	SXL64-17NH
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Effective Chamber Dimensions	400400400mm(WHD)
Atmosphere	Nitrogen/Hydrogen
Transport Package	Wooden Package
Specification	120019501250mm (WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

Applications

Primarily designed for high-temperature co-firing processes of alumina substrates and metal pastes (HTCC) in nitrogen-hydrogen atmospheres.

Technical Specifications

Rated Temperature: 1600°C

Maximum Temperature: 1700°C

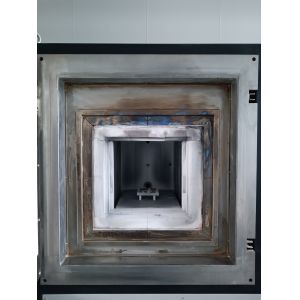

Effective Dimensions: 400 × 400 × 400mm (W×H×D)

Heating Method: U-shaped molybdenum coil

Process Atmosphere: Nitrogen/hydrogen (optional humidification)

Temperature Control Stability: ±1°C with PID self-tuning

Temperature Uniformity: Better than ±3°C

Thermocouple: B Type

Exhaust System: One exhaust port with ignition device

Alarm System: Sound and light alarms for over-temperature and thermocouple failure

Max Heating Power: 25kW

Insulation Power: ≤15kW

Heating Rate: RT-1000°C ≤5°C/min, 1000-1600°C ≤2°C/min

Surface Temperature Rise: <35°C

Weight: ~960kg

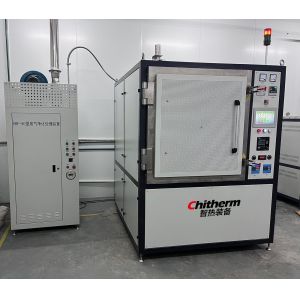

Furnace Dimensions: ~1200×1950×1250mm (W×H×D)

Appearance Color: Light gray

Delivery List

Item	Note	QTY
Basic Compositions
Furnace		1 PC
Certificates of Inspection	Furnace and major components	1 Set
Technical Documents	Specifications and component documents	1 Set
Key Parts
Molybdenum wire		1 Set
Dew point meter		1 PC
Temperature Controller		1 Set
Touch screen		1 Set
Vacuum system		1 Set
Oxygen Analyzer		1 Set
Hydrogen alarm instrument		1 Set
Water chiller		1 Set
Spares
Heating Elements	Molybdenum Coil	4 PC

Facility Requirements

Environmental conditions: Temperature 0-40°C, humidity ≤80% RH, no corrosive gas, no strong airflow disturbance
Process air conditions: Nitrogen (99.999% purity, 0.2-0.4Mpa, 3-6m³/h) and Hydrogen (99.99% purity, ≥0.1Mpa, 3-6m³/h)
Power air source: Clean, dry, oil-free compressed air (0.4-0.8Mpa)
Water inlet: 0.1-0.3Mpa, clean, non-corrosive (2-5L/min flow)
Ventilation system: Non-contact access to user pumping system (>1.5m³/h capacity)
Ground requirements: Level surface, minimal vibration, >200Kg/m² bearing capacity
Power conditions: >34kVA capacity, 3-phase 5-wire (220/380V, 50Hz)
Installation site: Minimum 2500×3000×2500mm (W×H×D), >5m² area
